Slide-On BMA Jack 2 Hole Flange to N Male
Cable Using PE-SR402FLJ Coax

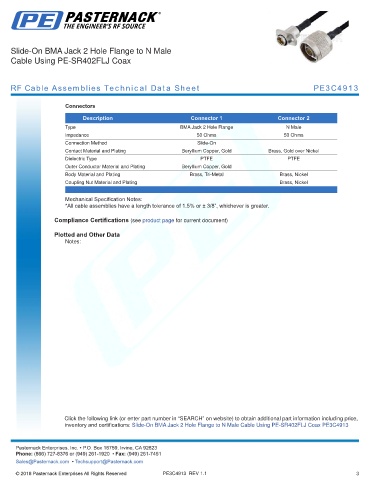

RF Cable Assemblies Technical Data Sheet PE3C4913

Connectors

Description Connector 1 Connector 2
Type BMA Jack 2 Hole Flange N Male
Impedance 50 Ohms 50 Ohms
Connection Method Slide-On
Contact Material and Plating Beryllium Copper, Gold Brass, Gold over Nickel
Dielectric Type PTFE PTFE
Outer Conductor Material and Plating Beryllium Copper, Gold
Body Material and Plating Brass, Tri-Metal Brass, Nickel
Coupling Nut Material and Plating Brass, Nickel
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Slide-On BMA Jack 2 Hole Flange to N Male Cable Using PE-SR402FLJ Coax PE3C4913
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
