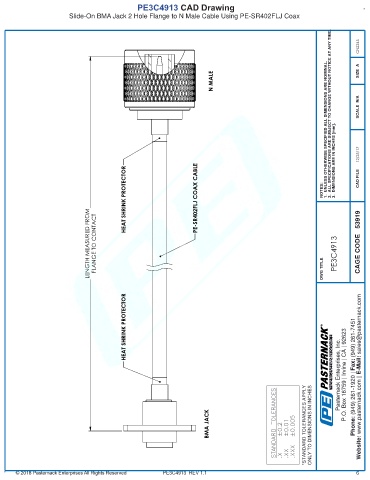

PE3C4913 CAD Drawing
Slide-On BMA Jack 2 Hole Flange to N Male Cable Using PE-SR402FLJ Coax

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOU T NOTICE AT ANY TIME.


1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

 SIZE A

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm].  CAD FILE

  NOTES:

  DWG TITLE  CAGE CODE 53919

 R Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 sales@pasternack.com E-Mail:

 Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com |

 *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES -



Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C4913 REV 1.1 6
