Slide-On BMA Jack 2 Hole Flange to SMP
Female Cable Using PE-SR405FLJ Coax

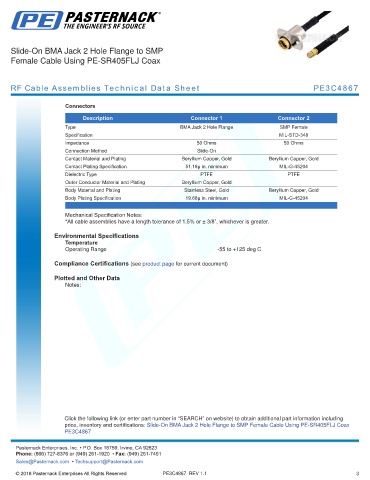

RF Cable Assemblies Technical Data Sheet PE3C4867

Connectors

Description Connector 1 Connector 2
Type BMA Jack 2 Hole Flange SMP Female
Specification MIL-STD-348
Impedance 50 Ohms 50 Ohms
Connection Method Slide-On
Contact Material and Plating Beryllium Copper, Gold Beryllium Copper, Gold
Contact Plating Specification 51.18µ in. minimum MIL-G-45204
Dielectric Type PTFE PTFE
Outer Conductor Material and Plating Beryllium Copper, Gold
Body Material and Plating Stainless Steel, Gold Beryllium Copper, Gold
Body Plating Specification 19.68µ in. minimum MIL-G-45204
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Environmental Specifications
Temperature
Operating Range -55 to +125 deg C

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: Slide-On BMA Jack 2 Hole Flange to SMP Female Cable Using PE-SR405FLJ Coax
PE3C4867 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C4867 REV 1.1 3
