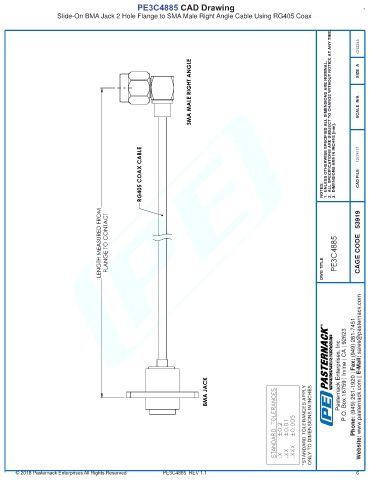

PE3C4885 CAD Drawing
Slide-On BMA Jack 2 Hole Flange to SMA Male Right Angle Cable Using RG405 Coax



 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. 2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOU T NOTICE AT ANY TIME. SIZE A SCALE N/A

 NOTES: 3. DIMENSIONS ARE IN INCHES [mm].  CAD FILE

  DWG TITLE  CAGE CODE 53919

R E-Mail: sales@pasternack.com

Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451


 *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES - Website: www.pasternack.com |




Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C4885 REV 1.1 6
