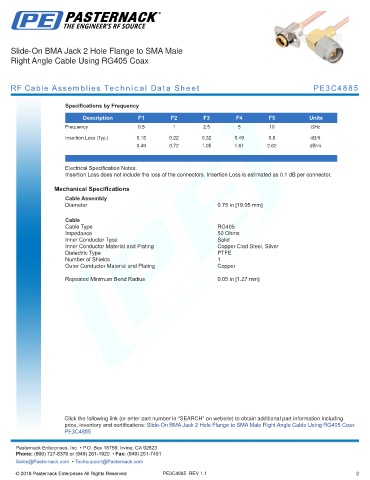

Slide-On BMA Jack 2 Hole Flange to SMA Male
Right Angle Cable Using RG405 Coax

RF Cable Assemblies Technical Data Sheet PE3C4885

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 0.5 1 2.5 5 10 GHz
Insertion Loss (Typ.) 0.15 0.22 0.32 0.49 0.8 dB/ft
0.49 0.72 1.05 1.61 2.62 dB/m

.
Electrical Specification Notes:
Insertion Loss does not include the loss of the connectors. Insertion Loss is estimated as 0.1 dB per connector.

Mechanical Specifications
Cable Assembly
Diameter 0.75 in [19.05 mm]
.
Cable
Cable Type RG405
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 1
Outer Conductor Material and Plating Copper
.
Repeated Minimum Bend Radius 0.05 in [1.27 mm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: Slide-On BMA Jack 2 Hole Flange to SMA Male Right Angle Cable Using RG405 Coax
PE3C4885 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
