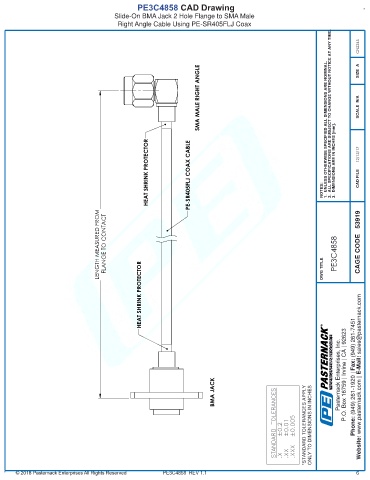

PE3C4858 CAD Drawing
Slide-On BMA Jack 2 Hole Flange to SMA Male
Right Angle Cable Using PE-SR405FLJ Coax

 SIZE A

 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. 2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOU T NOTICE AT ANY TIME. SCALE N/A

  NOTES: 3. DIMENSIONS ARE IN INCHES [mm].  CAD FILE

  DWG TITLE  CAGE CODE 53919

 R sales@pasternack.com
