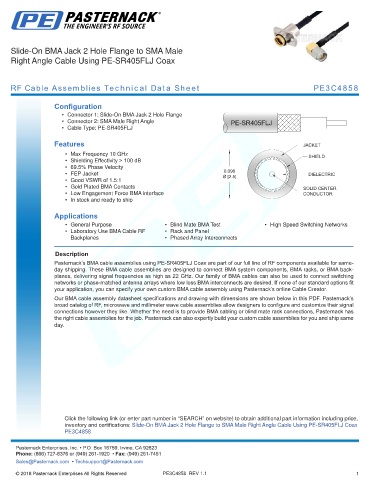

Slide-On BMA Jack 2 Hole Flange to SMA Male
Right Angle Cable Using PE-SR405FLJ Coax

RF Cable Assemblies Technical Data Sheet PE3C4858

Configuration
• Connector 1: Slide-On BMA Jack 2 Hole Flange
• Connector 2: SMA Male Right Angle
• Cable Type: PE-SR405FLJ

Features
• Max Frequency 10 GHz
• Shielding Effectivity > 100 dB
• 69.5% Phase Velocity
• FEP Jacket
• Good VSWR of 1.5:1
• Gold Plated BMA Contacts
• Low Engagement Force BMA interface
• In stock and ready to ship

Applications
• General Purpose • Blind Mate BMA Test • High Speed Switching Networks
• Laboratory Use BMA Cable RF • Rack and Panel
Backplanes • Phased Array Interconnects
.
Description
Pasternack’s BMA cable assemblies using PE-SR405FLJ Coax are part of our full line of RF components available for same-
day shipping. These BMA cable assemblies are designed to connect BMA system components, BMA racks, or BMA back-
planes, delivering signal frequencies as high as 22 GHz. Our family of BMA cables can also be used to connect switching
networks or phase-matched antenna arrays where low loss BMA interconnects are desired. If none of our standard options fit
your application, you can specify your own custom BMA cable assembly using Pasternack’s online Cable Creator.
Our BMA cable assembly datasheet specifications and drawing with dimensions are shown below in this PDF. Pasternack’s
broad catalog of RF, microwave and millimeter wave cable assemblies allow designers to configure and customize their signal
connections however they like. Whether the need is to provide BMA cabling or blind mate rack connections, Pasternack has
the right cable assemblies for the job. Pasternack can also expertly build your custom cable assemblies for you and ship same
day.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Slide-On BMA Jack 2 Hole Flange to SMA Male Right Angle Cable Using PE-SR405FLJ Coax
PE3C4858 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C4858 REV 1.1 1
