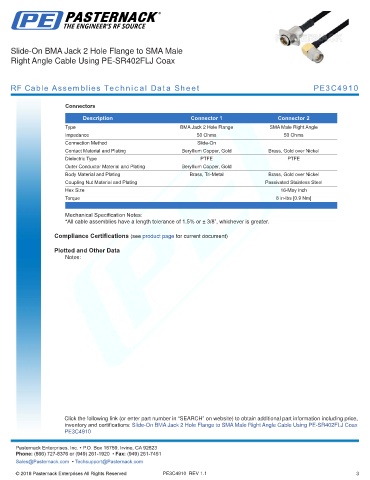

Slide-On BMA Jack 2 Hole Flange to SMA Male
Right Angle Cable Using PE-SR402FLJ Coax
RF Cable Assemblies Technical Data Sheet PE3C4910
Connectors
Description Connector 1 Connector 2
Type BMA Jack 2 Hole Flange SMA Male Right Angle
Impedance 50 Ohms 50 Ohms
Connection Method Slide-On
Contact Material and Plating Beryllium Copper, Gold Brass, Gold over Nickel
Dielectric Type PTFE PTFE
Outer Conductor Material and Plating Beryllium Copper, Gold
Body Material and Plating Brass, Tri-Metal Brass, Gold over Nickel
Coupling Nut Material and Plating Passivated Stainless Steel
Hex Size 16-May inch
Torque 8 in-lbs [0.9 Nm]
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Slide-On BMA Jack 2 Hole Flange to SMA Male Right Angle Cable Using PE-SR402FLJ Coax
PE3C4910 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
