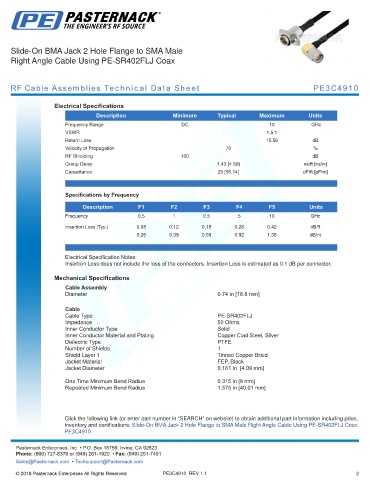

Page 1844 - 1.0/2.3 to BMA RF Cable Assembly Datasheets

Slide-On BMA Jack 2 Hole Flange to SMA Male
Right Angle Cable Using PE-SR402FLJ Coax

RF Cable Assemblies Technical Data Sheet PE3C4910

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 10 GHz
VSWR 1.5:1
Return Loss 15.56 dB
Velocity of Propagation 70 %
RF Shielding 100 dB
Group Delay 1.43 [4.69] ns/ft [ns/m]
Capacitance 29 [95.14] pF/ft [pF/m]
.
Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 0.5 1 2.5 5 10 GHz
Insertion Loss (Typ.) 0.08 0.12 0.18 0.28 0.42 dB/ft
0.26 0.39 0.59 0.92 1.38 dB/m
.
Electrical Specification Notes:
Insertion Loss does not include the loss of the connectors. Insertion Loss is estimated as 0.1 dB per connector.
Mechanical Specifications
Cable Assembly
Diameter 0.74 in [18.8 mm]
.
Cable
Cable Type PE-SR402FLJ
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 1
Shield Layer 1 Tinned Copper Braid
Jacket Material FEP, Black
Jacket Diameter 0.161 in [4.09 mm]
.
One Time Minimum Bend Radius 0.315 in [8 mm]
Repeated Minimum Bend Radius 1.575 in [40.01 mm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Slide-On BMA Jack 2 Hole Flange to SMA Male Right Angle Cable Using PE-SR402FLJ Coax
