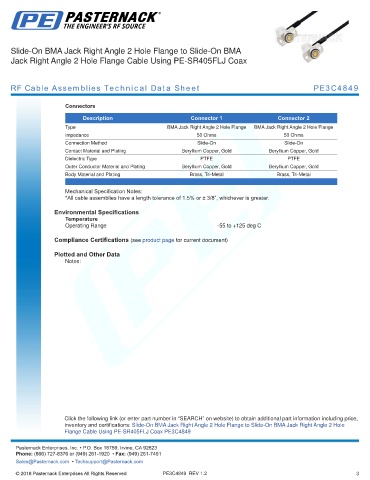

Slide-On BMA Jack Right Angle 2 Hole Flange to Slide-On BMA
Jack Right Angle 2 Hole Flange Cable Using PE-SR405FLJ Coax
RF Cable Assemblies Technical Data Sheet PE3C4849
Connectors
Description Connector 1 Connector 2
Type BMA Jack Right Angle 2 Hole Flange BMA Jack Right Angle 2 Hole Flange
Impedance 50 Ohms 50 Ohms
Connection Method Slide-On Slide-On
Contact Material and Plating Beryllium Copper, Gold Beryllium Copper, Gold
Dielectric Type PTFE PTFE
Outer Conductor Material and Plating Beryllium Copper, Gold Beryllium Copper, Gold
Body Material and Plating Brass, Tri-Metal Brass, Tri-Metal
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.
Environmental Specifications
Temperature
Operating Range -55 to +125 deg C
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Slide-On BMA Jack Right Angle 2 Hole Flange to Slide-On BMA Jack Right Angle 2 Hole
Flange Cable Using PE-SR405FLJ Coax PE3C4849 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
PE3C4849 REV 1.2 3
