Slide-On BMA Jack Right Angle 2 Hole Flange to Slide-On BMA
Jack Right Angle 2 Hole Flange Cable Using PE-SR405FLJ Coax

RF Cable Assemblies Technical Data Sheet PE3C4849

Typical Performance Data

2X
#2-56 UNC-2B
.378 +.000
-.002
0.00
9.60 -0.05
.243
.242
.559±.004 6.17
14.20±0.10 6.15

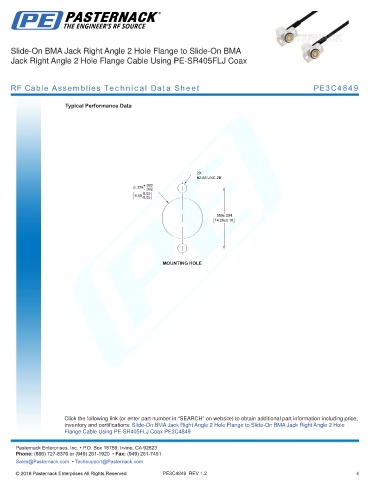

MOUNTING HOLE
MOUNTING HOLE

.320 +.001
-.000
8.13 +0.03
0.00

MOUNTING HOLE

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Slide-On BMA Jack Right Angle 2 Hole Flange to Slide-On BMA Jack Right Angle 2 Hole
Flange Cable Using PE-SR405FLJ Coax PE3C4849 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

A A
PE3C4849 REV 1.2 4
.500±.003
12.70±0.07

.450 +.001
-.000
11.43 +0.03
0.00

+.002
.341 -.000 .317±.001
8.66 +0.05 8.05±0.02
0.00

PANEL DRILLING

SECTION A-A
SCALE 4 : 1
