Page 1938 - 1.0/2.3 to BMA RF Cable Assembly Datasheets

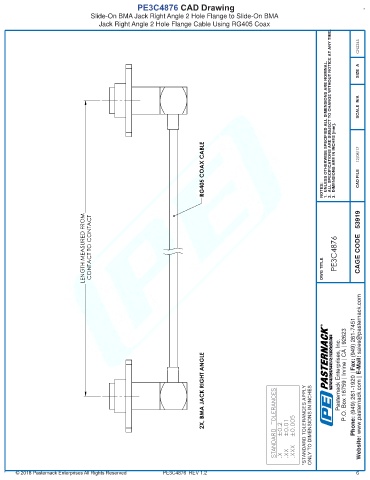

PE3C4876 CAD Drawing
Slide-On BMA Jack Right Angle 2 Hole Flange to Slide-On BMA
Jack Right Angle 2 Hole Flange Cable Using RG405 Coax
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOU T NOTICE AT ANY TIME.


1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SIZE A

SCALE N/A

 NOTES: 3. DIMENSIONS ARE IN INCHES [mm].  CAD FILE

  DWG TITLE  CAGE CODE 53919

R

 Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451 www.pasternack.com | E-Mail: sales@pasternack.com

ONLY TO DIMENSIONS IN INCHES
*STANDARD TOLERANCES APPLY





Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation. - Website:

PE3C4876 REV 1.2 6
