Slide-On BMA Plug Bulkhead to Snap-On BMA
Jack Cable Using PE-SR402FLJ Coax

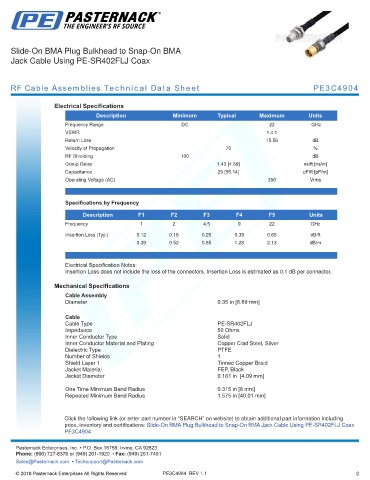

RF Cable Assemblies Technical Data Sheet PE3C4904

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 22 GHz
VSWR 1.4:1
Return Loss 15.56 dB
Velocity of Propagation 70 %
RF Shielding 100 dB
Group Delay 1.43 [4.69] ns/ft [ns/m]
Capacitance 29 [95.14] pF/ft [pF/m]
Operating Voltage (AC) 350 Vrms

.
Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 1 2 4.5 9 22 GHz
Insertion Loss (Typ.) 0.12 0.16 0.26 0.39 0.65 dB/ft
0.39 0.52 0.85 1.28 2.13 dB/m

.
Electrical Specification Notes:
Insertion Loss does not include the loss of the connectors. Insertion Loss is estimated as 0.1 dB per connector.

Mechanical Specifications
Cable Assembly
Diameter 0.35 in [8.89 mm]
.
Cable
Cable Type PE-SR402FLJ
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 1
Shield Layer 1 Tinned Copper Braid
Jacket Material FEP, Black
Jacket Diameter 0.161 in [4.09 mm]
.
One Time Minimum Bend Radius 0.315 in [8 mm]
Repeated Minimum Bend Radius 1.575 in [40.01 mm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: Slide-On BMA Plug Bulkhead to Snap-On BMA Jack Cable Using PE-SR402FLJ Coax
PE3C4904 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C4904 REV 1.1 2
