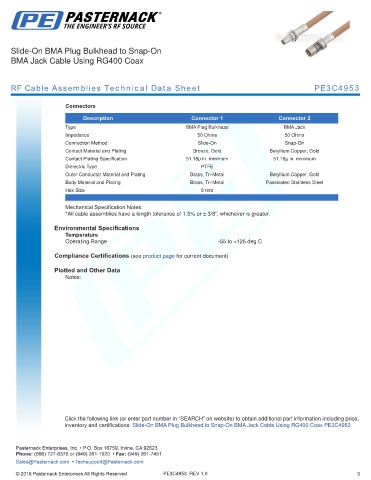

Slide-On BMA Plug Bulkhead to Snap-On
BMA Jack Cable Using RG400 Coax

RF Cable Assemblies Technical Data Sheet PE3C4953

Connectors

Description Connector 1 Connector 2
Type BMA Plug Bulkhead BMA Jack
Impedance 50 Ohms 50 Ohms
Connection Method Slide-On Snap-On
Contact Material and Plating Bronze, Gold Beryllium Copper, Gold
Contact Plating Specification 51.18µ in. minimum 51.18µ in. minimum
Dielectric Type PTFE
Outer Conductor Material and Plating Brass, Tri-Metal Beryllium Copper, Gold
Body Material and Plating Brass, Tri-Metal Passivated Stainless Steel
Hex Size 8 mm
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Environmental Specifications
Temperature
Operating Range -55 to +125 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Slide-On BMA Plug Bulkhead to Snap-On BMA Jack Cable Using RG400 Coax PE3C4953
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C4953 REV 1.0 3
