Slide-On BMA Plug Bulkhead to Snap-On
BMA Jack Cable Using RG405 Coax

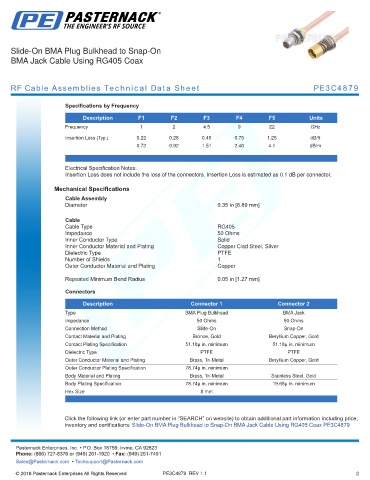

RF Cable Assemblies Technical Data Sheet PE3C4879

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 1 2 4.5 9 22 GHz
Insertion Loss (Typ.) 0.22 0.28 0.46 0.75 1.25 dB/ft
0.72 0.92 1.51 2.46 4.1 dB/m

.
Electrical Specification Notes:
Insertion Loss does not include the loss of the connectors. Insertion Loss is estimated as 0.1 dB per connector.

Mechanical Specifications
Cable Assembly
Diameter 0.35 in [8.89 mm]
.
Cable
Cable Type RG405
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 1
Outer Conductor Material and Plating Copper
.
Repeated Minimum Bend Radius 0.05 in [1.27 mm]
Connectors

Description Connector 1 Connector 2
Type BMA Plug Bulkhead BMA Jack
Impedance 50 Ohms 50 Ohms
Connection Method Slide-On Snap-On
Contact Material and Plating Bronze, Gold Beryllium Copper, Gold
Contact Plating Specification 51.18µ in. minimum 51.18µ in. minimum
Dielectric Type PTFE PTFE
Outer Conductor Material and Plating Brass, Tri-Metal Beryllium Copper, Gold
Outer Conductor Plating Specification 78.74µ in. minimum
Body Material and Plating Brass, Tri-Metal Stainless Steel, Gold
Body Plating Specification 78.74µ in. minimum 19.68µ in. minimum
Hex Size 8 mm
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Slide-On BMA Plug Bulkhead to Snap-On BMA Jack Cable Using RG405 Coax PE3C4879
-
