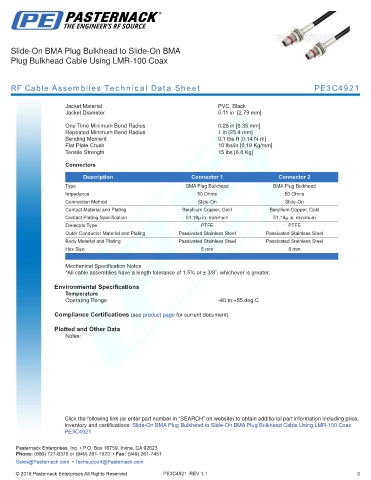

Slide-On BMA Plug Bulkhead to Slide-On BMA
Plug Bulkhead Cable Using LMR-100 Coax

RF Cable Assemblies Technical Data Sheet PE3C4921

Jacket Material PVC, Black
Jacket Diameter 0.11 in [2.79 mm]
.
One Time Minimum Bend Radius 0.25 in [6.35 mm]
Repeated Minimum Bend Radius 1 in [25.4 mm]
Bending Moment 0.1 lbs-ft [0.14 N-m]
Flat Plate Crush 10 lbs/in [0.18 Kg/mm]
Tensile Strength 15 lbs [6.8 Kg]
Connectors

Description Connector 1 Connector 2
Type BMA Plug Bulkhead BMA Plug Bulkhead
Impedance 50 Ohms 50 Ohms
Connection Method Slide-On Slide-On
Contact Material and Plating Beryllium Copper, Gold Beryllium Copper, Gold
Contact Plating Specification 51.18µ in. minimum 51.18µ in. minimum
Dielectric Type PTFE PTFE
Outer Conductor Material and Plating Passivated Stainless Steel Passivated Stainless Steel
Body Material and Plating Passivated Stainless Steel Passivated Stainless Steel
Hex Size 8 mm 8 mm
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Environmental Specifications
Temperature
Operating Range -40 to +85 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Slide-On BMA Plug Bulkhead to Slide-On BMA Plug Bulkhead Cable Using LMR-100 Coax
PE3C4921 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C4921 REV 1.1 3
