Page 2046 - 1.0/2.3 to BMA RF Cable Assembly Datasheets

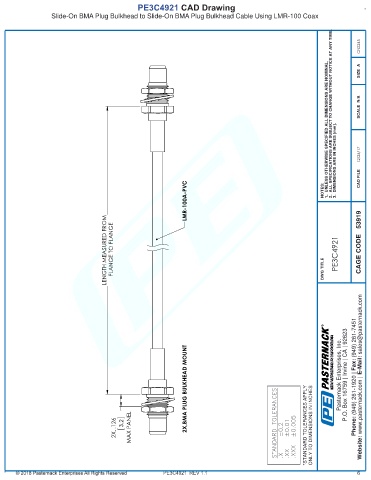

PE3C4921 CAD Drawing
Slide-On BMA Plug Bulkhead to Slide-On BMA Plug Bulkhead Cable Using LMR-100 Coax

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOU T NOTICE AT ANY TIME.


1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SIZE A

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm].  CAD FILE

VC NOTES:

  DWG TITLE  CAGE CODE 53919

R E-Mail: sales@pasternack.com

 Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451


     *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES - Website: www.pasternack.com |


Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C4921 REV 1.1 6
