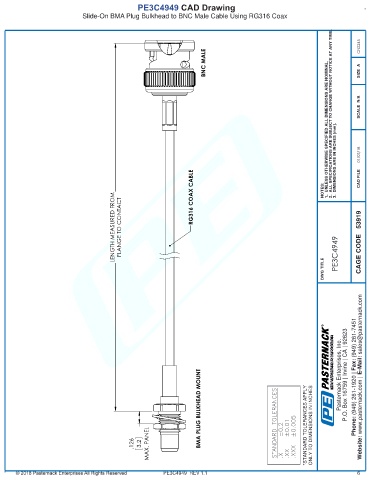

PE3C4949 CAD Drawing
Slide-On BMA Plug Bulkhead to BNC Male Cable Using RG316 Coax

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOU T NOTICE AT ANY TIME.

 SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm].  CAD FILE

NOTES:
   CAGE CODE 53919

DWG TITLE 

R E-Mail: sales@pasternack.com

 Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com |

*STANDARD TOLERANCES APPLY
ONLY TO DIMENSIONS IN INCHES




Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation. -
   

PE3C4949 REV 1.1 6
