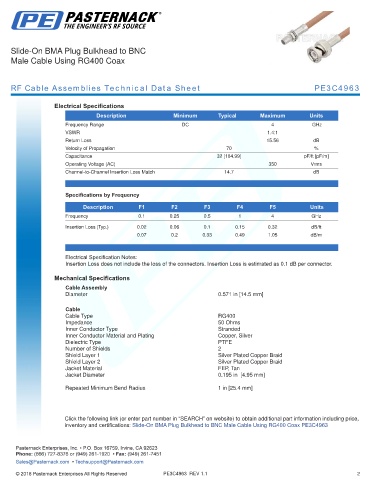

Slide-On BMA Plug Bulkhead to BNC
Male Cable Using RG400 Coax

RF Cable Assemblies Technical Data Sheet PE3C4963

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
VSWR 1.4:1
Return Loss 15.56 dB
Velocity of Propagation 70 %
Capacitance 32 [104.99] pF/ft [pF/m]
Operating Voltage (AC) 350 Vrms
Channel-to-Channel Insertion Loss Match 14.7 dB
.
Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 0.1 0.25 0.5 1 4 GHz
Insertion Loss (Typ.) 0.02 0.06 0.1 0.15 0.32 dB/ft
0.07 0.2 0.33 0.49 1.05 dB/m
.
Electrical Specification Notes:
Insertion Loss does not include the loss of the connectors. Insertion Loss is estimated as 0.1 dB per connector.
Mechanical Specifications
Cable Assembly
Diameter 0.571 in [14.5 mm]
.
Cable
Cable Type RG400
Impedance 50 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper, Silver
Dielectric Type PTFE
Number of Shields 2
Shield Layer 1 Silver Plated Copper Braid
Shield Layer 2 Silver Plated Copper Braid
Jacket Material FEP, Tan
Jacket Diameter 0.195 in [4.95 mm]
.
Repeated Minimum Bend Radius 1 in [25.4 mm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Slide-On BMA Plug Bulkhead to BNC Male Cable Using RG400 Coax PE3C4963
-
