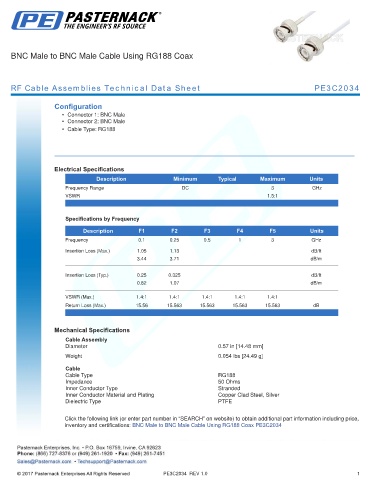

BNC Male to BNC Male Cable Using RG188 Coax

RF Cable Assemblies Technical Data Sheet PE3C2034

Configuration
• Connector 1: BNC Male
• Connector 2: BNC Male
• Cable Type: RG188

.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.5:1
.

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 0.1 0.25 0.5 1 3 GHz
Insertion Loss (Max.) 1.05 1.13 dB/ft
3.44 3.71 dB/m

Insertion Loss (Typ.) 0.25 0.325 dB/ft
0.82 1.07 dB/m
VSWR (Max.) 1.4:1 1.4:1 1.4:1 1.4:1 1.4:1
Return Loss (Max.) 15.56 15.563 15.563 15.563 15.563 dB
.

Mechanical Specifications
Cable Assembly
Diameter 0.57 in [14.48 mm]
.
Weight 0.054 lbs [24.49 g]
Cable
Cable Type RG188
Impedance 50 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male to BNC Male Cable Using RG188 Coax PE3C2034

PE3C2034 REV 1.0 1
