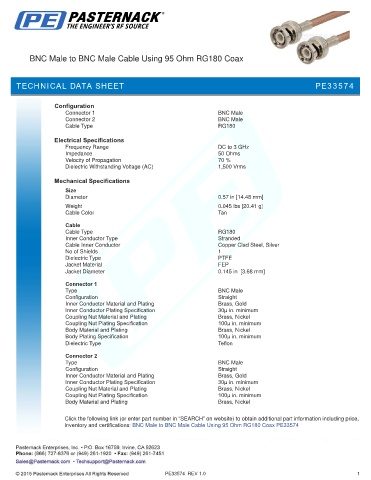

BNC Male to BNC Male Cable Using 95 Ohm RG180 Coax

TECHNICAL DATA SHEETATA SHEET
TECHNICAL D PE33574

Configuration
Connector 1 BNC Male
Connector 2 BNC Male
Cable Type RG180

Electrical Specifications
Frequency Range DC to 3 GHz
Impedance 50 Ohms
Velocity of Propagation 70 %
Dielectric Withstanding Voltage (AC) 1,500 Vrms
Mechanical Specifications
Size
Diameter 0.57 in [14.48 mm]
.
Weight 0.045 lbs [20.41 g]
Cable Color Tan

Cable
Cable Type RG180
Inner Conductor Type Stranded
Cable Inner Conductor Copper Clad Steel, Silver
No of Shields 1
Dielectric Type PTFE
Jacket Material FEP
Jacket Diameter 0.145 in [3.68 mm]

Connector 1
Type BNC Male
Configuration Straight
Inner Conductor Material and Plating Brass, Gold
Inner Conductor Plating Specification 30µ in. minimum
Coupling Nut Material and Plating Brass, Nickel
Coupling Nut Plating Specification 100µ in. minimum
Body Material and Plating Brass, Nickel
Body Plating Specification 100µ in. minimum
Dielectric Type Teflon

Connector 2
Type BNC Male
Configuration Straight
Inner Conductor Material and Plating Brass, Gold
Inner Conductor Plating Specification 30µ in. minimum
Coupling Nut Material and Plating Brass, Nickel
Coupling Nut Plating Specification 100µ in. minimum
Body Material and Plating Brass, Nickel

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male to BNC Male Cable Using 95 Ohm RG180 Coax PE33574

PE33574 REV 1.0 1
