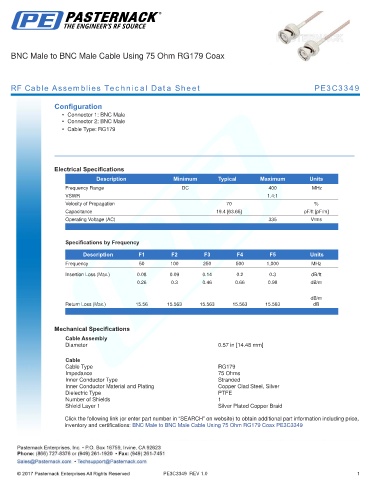

BNC Male to BNC Male Cable Using 75 Ohm RG179 Coax

RF Cable Assemblies Technical Data Sheet PE3C3349

Configuration
• Connector 1: BNC Male
• Connector 2: BNC Male
• Cable Type: RG179

.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 400 MHz
VSWR 1.4:1
Velocity of Propagation 70 %
Capacitance 19.4 [63.65] pF/ft [pF/m]
Operating Voltage (AC) 335 Vrms
.

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 50 100 250 500 1,000 MHz
Insertion Loss (Max.) 0.08 0.09 0.14 0.2 0.3 dB/ft
0.26 0.3 0.46 0.66 0.98 dB/m

dB/m
Return Loss (Max.) 15.56 15.563 15.563 15.563 15.563 dB
.

Mechanical Specifications
Cable Assembly
Diameter 0.57 in [14.48 mm]
.
Cable
Cable Type RG179
Impedance 75 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 1
Shield Layer 1 Silver Plated Copper Braid

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male to BNC Male Cable Using 75 Ohm RG179 Coax PE3C3349

PE3C3349 REV 1.0 1
