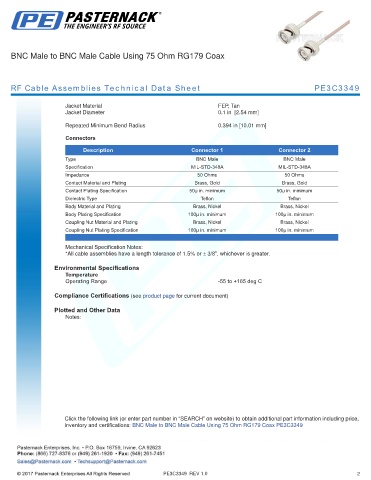

BNC Male to BNC Male Cable Using 75 Ohm RG179 Coax

RF Cable Assemblies Technical Data Sheet PE3C3349

Jacket Material FEP, Tan
Jacket Diameter 0.1 in [2.54 mm]
.
Repeated Minimum Bend Radius 0.394 in [10.01 mm]

Connectors
Description Connector 1 Connector 2
Type BNC Male BNC Male
Specification MIL-STD-348A MIL-STD-348A
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Brass, Gold Brass, Gold
Contact Plating Specification 50µ in. minimum 50µ in. minimum
Dielectric Type Teflon Teflon
Body Material and Plating Brass, Nickel Brass, Nickel
Body Plating Specification 100µ in. minimum 100µ in. minimum
Coupling Nut Material and Plating Brass, Nickel Brass, Nickel
Coupling Nut Plating Specification 100µ in. minimum 100µ in. minimum
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.
Environmental Specifications
Temperature
Operating Range -55 to +165 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male to BNC Male Cable Using 75 Ohm RG179 Coax PE3C3349

PE3C3349 REV 1.0 2
