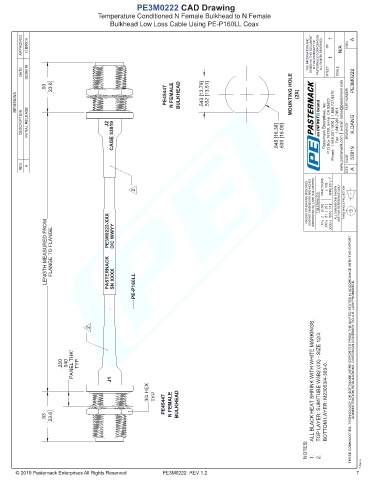

PE3M0222 CAD Drawing
Temperature Conditioned N Female Bulkhead to N Female
Bulkhead Low Loss Cable Using PE-P160LL Coax

APPROVED D.BIRCH THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. 1 1 N/A REV A

DATE 02/06/19 SHEET OF SCALE

.93 23.6 .543 [13.79] .532 [13.51] MOUNTING HOLE (2X) PE3M0222
REVISIONS PE45447 N FEMALE BULKHEAD PART NUMBER

DESCRIPTION INITIAL RELEASE J2 CAGE 53919 .645 [16.38] .630 [16.00] Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com DRAWN BY K.DANG

REV. A CAGE SIZE 53919 A

UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: .2 [5.08] .X=± .01 [ .25 ] .XX=± .005 [ .13 ] .XXX=± ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION
2 FRACTIONS ± 1/32 ANGLES ± 1°

LENGTH MEASURED FROM FLANGE TO FLANGE PASTERNACK PE3M0222-XXX SN XXXX D/C WWYY PE-P160LL

2

.250 .040 PANEL THK'. TYP THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.

J1 ALL BLACK HEAT SHRINK WITH WHITE MARKINGS. TOP LAYER: SUMITUBE W3B2 (4X) - SIZE 12/3.
3/4 HEX TYP

PE45447 N FEMALE BULKHEAD BOTTOM LAYER: M23053/4-303-0.
.93 23.6

-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
NOTES: 1. 2.

T-Rev.A
PE3M0222 REV 1.2 7
