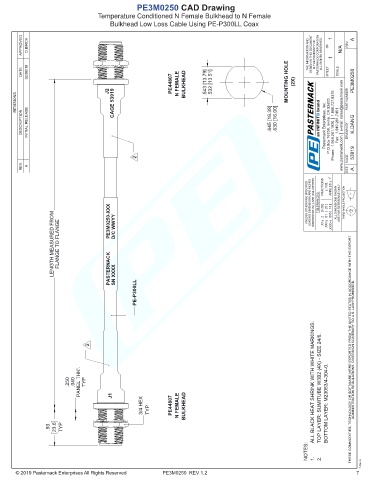

PE3M0250 CAD Drawing
Temperature Conditioned N Female Bulkhead to N Female
Bulkhead Low Loss Cable Using PE-P300LL Coax

APPROVED D.BIRCH THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. 1 1 N/A REV A

DATE 02/08/19 SHEET OF SCALE PE3M0250

J2 PE44807 N FEMALE BULKHEAD .543 [13.79] .532 [13.51] MOUNTING HOLE (2X)
REVISIONS CAGE 53919 PART NUMBER

DESCRIPTION INITIAL RELEASE .645 [16.38] .630 [16.00] Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com DRAWN BY K.DANG

2 CAGE 53919
REV. A SIZE A

UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: FRACTIONS .2 [5.08] ± 1/32 .01 [ .25 ] ANGLES ± 1° .005 [ .13 ] ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION

LENGTH MEASURED FROM FLANGE TO FLANGE PASTERNACK PE3M0250-XXX SN XXXX D/C WWYY .X=± .XX=± .XXX=±

PE-P300LL

2 THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.

.250 .040 PANEL THK'. TYP ALL BLACK HEAT SHRINK WITH WHITE MARKINGS. TOP LAYER: SUMITUBE W3B2 (4X) - SIZE 24/6.

J1
3/4 HEX TYP PE44807 N FEMALE BULKHEAD BOTTOM LAYER: M23053/4-304-0.

.93 23.6 TYP -
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
NOTES:

2.
1.
T-Rev.A
PE3M0250 REV 1.2 7
