Plenum N Female Bulkhead to SMA Male Low PIM Cable
Using SPP-250-LLPL Coax Using Times Microwave Parts

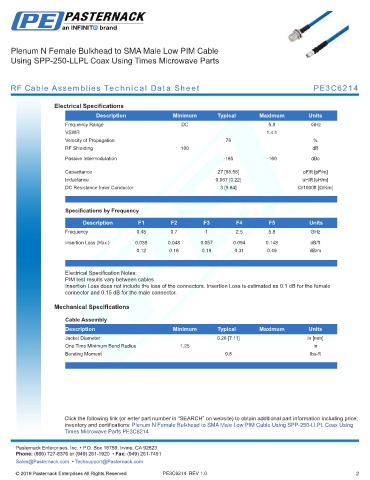

RF Cable Assemblies Technical Data Sheet PE3C6214

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 5.8 GHz
VSWR 1.4:1
Velocity of Propagation 76 %
RF Shielding 100 dB
Passive Intermodulation -165 -160 dBc

Capacitance 27 [88.58] pF/ft [pF/m]
Inductance 0.067 [0.22] uH/ft [uH/m]
DC Resistance Inner Conductor 3 [9.84] Ω/1000ft [Ω/Km]
.

Specifications by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency 0.45 0.7 1 2.5 5.8 GHz
Insertion Loss (Max.) 0.038 0.048 0.057 0.094 0.148 dB/ft
0.12 0.16 0.19 0.31 0.49 dB/m

.
Electrical Specification Notes:
PIM test results vary between cables
Insertion Loss does not include the loss of the connectors. Insertion Loss is estimated as 0.1 dB for the female
connector and 0.15 dB for the male connector.
Mechanical Specifications

Cable Assembly
Description Minimum Typical Maximum Units
Jacket Diameter 0.28 [7.11] in [mm]
One Time Minimum Bend Radius 1.25 in
Bending Moment 0.8 lbs-ft

.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Plenum N Female Bulkhead to SMA Male Low PIM Cable Using SPP-250-LLPL Coax Using
Times Microwave Parts PE3C6214 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C6214 REV 1.0 2
