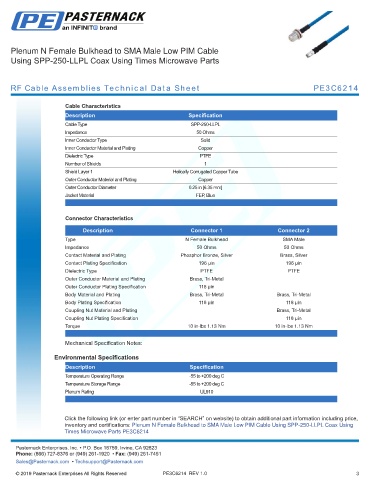

Plenum N Female Bulkhead to SMA Male Low PIM Cable
Using SPP-250-LLPL Coax Using Times Microwave Parts

RF Cable Assemblies Technical Data Sheet PE3C6214

Cable Characteristics
Description Specification
Cable Type SPP-250-LLPL
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper
Dielectric Type PTFE
Number of Shields 1
Shield Layer 1 Helically Corrugated Copper Tube
Outer Conductor Material and Plating Copper
Outer Conductor Diameter 0.25 in [6.35 mm]
Jacket Material FEP, Blue
.

Connector Characteristics

Description Connector 1 Connector 2
Type N Female Bulkhead SMA Male
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Phosphor Bronze, Silver Brass, Silver
Contact Plating Specification 196 µin 196 µin
Dielectric Type PTFE PTFE
Outer Conductor Material and Plating Brass, Tri-Metal
Outer Conductor Plating Specification 118 µin
Body Material and Plating Brass, Tri-Metal Brass, Tri-Metal
Body Plating Specification 118 µin 118 µin
Coupling Nut Material and Plating Brass, Tri-Metal
Coupling Nut Plating Specification 118 µin
Torque 10 in-lbs 1.13 Nm 10 in-lbs 1.13 Nm
.
Mechanical Specification Notes:

Environmental Specifications
Description Specification
Temperature Operating Range -55 to +200 deg C
Temperature Storage Range -55 to +200 deg C
Plenum Rating UL910
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Plenum N Female Bulkhead to SMA Male Low PIM Cable Using SPP-250-LLPL Coax Using
Times Microwave Parts PE3C6214 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C6214 REV 1.0 3
