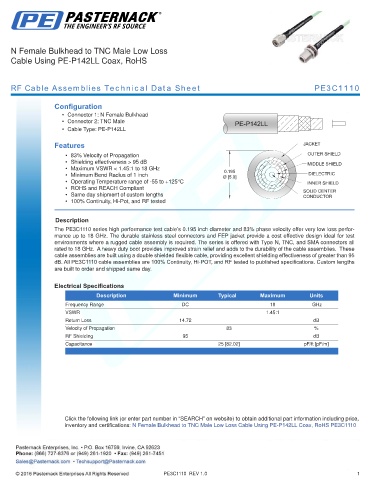

N Female Bulkhead to TNC Male Low Loss
Cable Using PE-P142LL Coax, RoHS

RF Cable Assemblies Technical Data Sheet PE3C1110

Configuration
• Connector 1: N Female Bulkhead
• Connector 2: TNC Male
• Cable Type: PE-P142LL

Features
• 83% Velocity of Propagation
• Shielding effectiveness > 95 dB
• Maximum VSWR < 1.45:1 to 18 GHz
• Minimum Bend Radius of 1 inch
• Operating Temperature range of -55 to +125°C
• ROHS and REACH Compliant
• Same day shipment of custom lengths
• 100% Continuity, Hi-Pot, and RF tested
.
Description
The PE3C1110 series high performance test cable’s 0.195 inch diameter and 83% phase velocity offer very low loss perfor-
mance up to 18 GHz. The durable stainless steel connectors and FEP jacket provide a cost effective design ideal for test
environments where a rugged cable assembly is required. The series is offered with Type N, TNC, and SMA connectors all
rated to 18 GHz. A heavy duty boot provides improved strain relief and adds to the durability of the cable assemblies. These
cable assemblies are built using a double shielded flexible cable, providing excellent shielding effectiveness of greater than 95
dB. All PE3C1110 cable assemblies are 100% Continuity, Hi-POT, and RF tested to published specifications. Custom lengths
are built to order and shipped same day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.45:1
Return Loss 14.72 dB
Velocity of Propagation 83 %
RF Shielding 95 dB
Capacitance 25 [82.02] pF/ft [pF/m]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Bulkhead to TNC Male Low Loss Cable Using PE-P142LL Coax, RoHS PE3C1110

PE3C1110 REV 1.0 1
