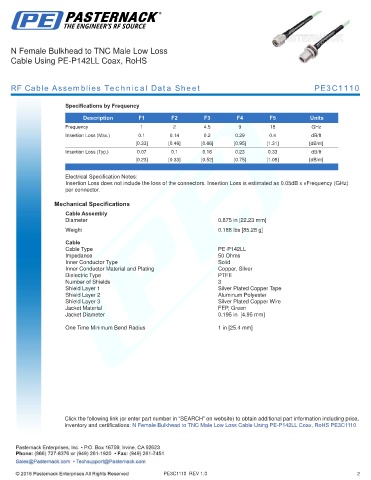

N Female Bulkhead to TNC Male Low Loss
Cable Using PE-P142LL Coax, RoHS

RF Cable Assemblies Technical Data Sheet PE3C1110

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 1 2 4.5 9 18 GHz
Insertion Loss (Max.) 0.1 0.14 0.2 0.29 0.4 dB/ft
[0.33] [0.46] [0.66] [0.95] [1.31] [dB/m]
Insertion Loss (Typ.) 0.07 0.1 0.16 0.23 0.33 dB/ft
[0.23] [0.33] [0.52] [0.75] [1.08] [dB/m]
.
Electrical Specification Notes:
Insertion Loss does not include the loss of the connectors. Insertion Loss is estimated as 0.05dB x vFrequency (GHz)
per connector.

Mechanical Specifications
Cable Assembly
Diameter 0.875 in [22.23 mm]
.
Weight 0.188 lbs [85.28 g]
Cable
Cable Type PE-P142LL
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper, Silver
Dielectric Type PTFE
Number of Shields 3
Shield Layer 1 Silver Plated Copper Tape
Shield Layer 2 Aluminum Polyester
Shield Layer 3 Silver Plated Copper Wire
Jacket Material FEP, Green
Jacket Diameter 0.195 in [4.95 mm]
.
One Time Minimum Bend Radius 1 in [25.4 mm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Bulkhead to TNC Male Low Loss Cable Using PE-P142LL Coax, RoHS PE3C1110

PE3C1110 REV 1.0 2
