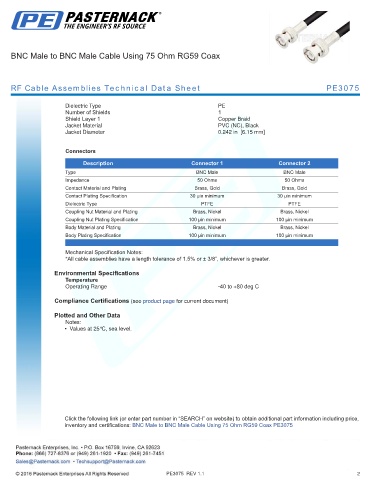

BNC Male to BNC Male Cable Using 75 Ohm RG59 Coax
RF Cable Assemblies Technical Data Sheet PE3075
Dielectric Type PE
Number of Shields 1
Shield Layer 1 Copper Braid
Jacket Material PVC (NC), Black
Jacket Diameter 0.242 in [6.15 mm]
.
Connectors
Description Connector 1 Connector 2
Type BNC Male BNC Male
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Brass, Gold Brass, Gold
Contact Plating Specification 30 µin minimum 30 µin minimum
Dielectric Type PTFE PTFE
Coupling Nut Material and Plating Brass, Nickel Brass, Nickel
Coupling Nut Plating Specification 100 µin minimum 100 µin minimum
Body Material and Plating Brass, Nickel Brass, Nickel
Body Plating Specification 100 µin minimum 100 µin minimum
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.
Environmental Specifications
Temperature
Operating Range -40 to +80 deg C
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
• Values at 25°C, sea level.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male to BNC Male Cable Using 75 Ohm RG59 Coax PE3075
