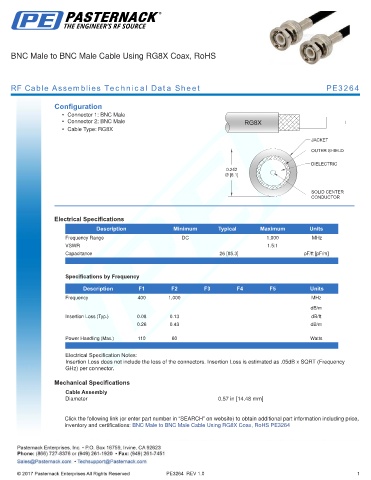

BNC Male to BNC Male Cable Using RG8X Coax, RoHS

RF Cable Assemblies Technical Data Sheet PE3264

Configuration
• Connector 1: BNC Male
• Connector 2: BNC Male
• Cable Type: RG8X

.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
VSWR 1.5:1
Capacitance 26 [85.3] pF/ft [pF/m]
.

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 400 1,000 MHz
dB/m
Insertion Loss (Typ.) 0.08 0.13 dB/ft
0.26 0.43 dB/m

Power Handling (Max.) 110 60 Watts
.
Electrical Specification Notes:
Insertion Loss does not include the loss of the connectors. Insertion Loss is estimated as .05dB x SQRT (Frequency
GHz) per connector.

Mechanical Specifications
Cable Assembly
Diameter 0.57 in [14.48 mm]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male to BNC Male Cable Using RG8X Coax, RoHS PE3264

PE3264 REV 1.0 1
