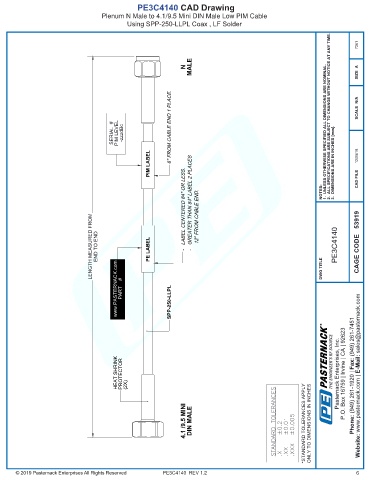

PE3C4140 CAD Drawing
Plenum N Male to 4.1/9.5 Mini DIN Male Low PIM Cable
Using SPP-250-LLPL Coax , LF Solder

7361

MALE
N SIZE A

SERIAL # PIM LEVEL -zzzdBc 6" FROM CABLE END 1 PLACE. 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. 2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME. SCALE N/A

PIM LABEL - GREATER THAN 84" LABEL 2 PLACES NOTES: 3. DIMENSIONS ARE IN INCHES [mm]. CAD FILE
12/05/18

LENGTH MEASURED FROM END TO END PE LABEL - LABEL CENTERED 84" OR LESS. 12" FROM CABLE END. PE3C4140 CAGE CODE 53919

www.PASTERNACK.com PART # SPP-250-LLPL DWG TITLE

R
P.O. Box 16759 | Irvine | CA | 92623
THE ENGINEER'S RF SOURCE
Pasternack Enterprises, Inc.

HEAT SHRINK PROTECTOR (2X) Pasternack does not make Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com

4.1 /9.5 MINI DIN MALE STANDARD TOLERANCES *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES -
.XXX ±0.005
.XX ±0.01
.X ±0.2

any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C4140 REV 1.2 6
