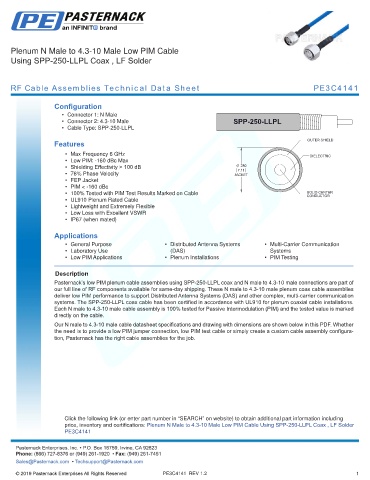

Plenum N Male to 4.3-10 Male Low PIM Cable
Using SPP-250-LLPL Coax , LF Solder

RF Cable Assemblies Technical Data Sheet PE3C4141

Configuration
• Connector 1: N Male
• Connector 2: 4.3-10 Male SPP-250-LLPL
• Cable Type: SPP-250-LLPL

Features OUTER SHIELD
• Max Frequency 6 GHz DIELECTRIC
• Low PIM: -160 dBc Max
• Shielding Effectivity > 100 dB .280
7.11
• 76% Phase Velocity JACKET
• FEP Jacket
• PIM < -160 dBc
• 100% Tested with PIM Test Results Marked on Cable SOLID CENTER
CONDUCTOR
• UL910 Plenum Rated Cable
• Lightweight and Extremely Flexible
• Low Loss with Excellent VSWR
• IP67 (when mated)

Applications
• General Purpose • Distributed Antenna Systems • Multi-Carrier Communication
• Laboratory Use (DAS) Systems
• Low PIM Applications • Plenum Installations • PIM Testing
.
Description
Pasternack’s low PIM plenum cable assemblies using SPP-250-LLPL coax and N male to 4.3-10 male connections are part of
our full line of RF components available for same-day shipping. These N male to 4.3-10 male plenum coax cable assemblies
deliver low PIM performance to support Distributed Antenna Systems (DAS) and other complex, multi-carrier communication
systems. The SPP-250-LLPL coax cable has been certified in accordance with UL910 for plenum coaxial cable installations.
Each N male to 4.3-10 male cable assembly is 100% tested for Passive Intermodulation (PIM) and the tested value is marked
directly on the cable.
Our N male to 4.3-10 male cable datasheet specifications and drawing with dimensions are shown below in this PDF. Whether
the need is to provide a low PIM jumper connection, low PIM test cable or simply create a custom cable assembly configura-
tion, Pasternack has the right cable assemblies for the job.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: Plenum N Male to 4.3-10 Male Low PIM Cable Using SPP-250-LLPL Coax , LF Solder
PE3C4141 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C4141 REV 1.2 1
