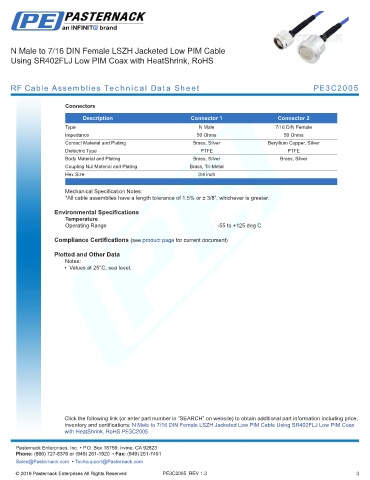

N Male to 7/16 DIN Female LSZH Jacketed Low PIM Cable
Using SR402FLJ Low PIM Coax with HeatShrink, RoHS

RF Cable Assemblies Technical Data Sheet PE3C2005

Connectors

Description Connector 1 Connector 2
Type N Male 7/16 DIN Female
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Brass, Silver Beryllium Copper, Silver
Dielectric Type PTFE PTFE
Body Material and Plating Brass, Silver Brass, Silver
Coupling Nut Material and Plating Brass, Tri-Metal
Hex Size 3/4 inch
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Environmental Specifications
Temperature
Operating Range -55 to +125 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:
• Values at 25°C, sea level.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male to 7/16 DIN Female LSZH Jacketed Low PIM Cable Using SR402FLJ Low PIM Coax
with HeatShrink, RoHS PE3C2005 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C2005 REV 1.3 3
