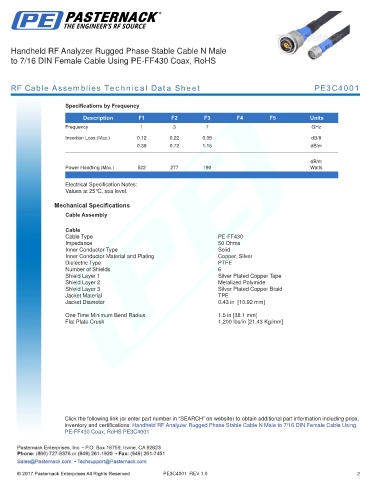

Handheld RF Analyzer Rugged Phase Stable Cable N Male
to 7/16 DIN Female Cable Using PE-FF430 Coax, RoHS

RF Cable Assemblies Technical Data Sheet PE3C4001

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 1 3 7 GHz
Insertion Loss (Max.) 0.12 0.22 0.35 dB/ft
0.39 0.72 1.15 dB/m

dB/m
Power Handling (Max.) 522 277 190 Watts
.
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Cable Assembly
.
Cable
Cable Type PE-FF430
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper, Silver
Dielectric Type PTFE
Number of Shields 6
Shield Layer 1 Silver Plated Copper Tape
Shield Layer 2 Metalized Polymide
Shield Layer 3 Silver Plated Copper Braid
Jacket Material TPE
Jacket Diameter 0.43 in [10.92 mm]
.
One Time Minimum Bend Radius 1.5 in [38.1 mm]
Flat Plate Crush 1,200 lbs/in [21.43 Kg/mm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Handheld RF Analyzer Rugged Phase Stable Cable N Male to 7/16 DIN Female Cable Using
PE-FF430 Coax, RoHS PE3C4001

PE3C4001 REV 1.0 2
