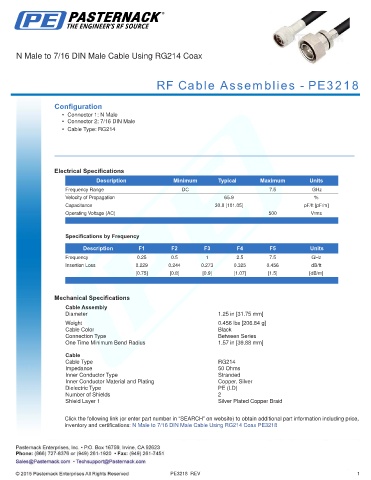

N Male to 7/16 DIN Male Cable Using RG214 Coax

RF Cable Assemblies - PE3218

Configuration
• Connector 1: N Male
• Connector 2: 7/16 DIN Male
• Cable Type: RG214

.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 7.5 GHz
Velocity of Propagation 65.9 %
Capacitance 30.8 [101.05] pF/ft [pF/m]
Operating Voltage (AC) 500 Vrms
.

Specifications by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency 0.25 0.5 1 2.5 7.5 GHz
Insertion Loss 0.229 0.244 0.273 0.325 0.456 dB/ft
[0.75] [0.8] [0.9] [1.07] [1.5] [dB/m]
.

Mechanical Specifications
Cable Assembly
Diameter 1.25 in [31.75 mm]
.
Weight 0.456 lbs [206.84 g]
Cable Color Black
Connection Type Between Series
One Time Minimum Bend Radius 1.57 in [39.88 mm]
Cable
Cable Type RG214
Impedance 50 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper, Silver
Dielectric Type PE (LD)
Number of Shields 2
Shield Layer 1 Silver Plated Copper Braid

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male to 7/16 DIN Male Cable Using RG214 Coax PE3218

PE3218 REV 1
