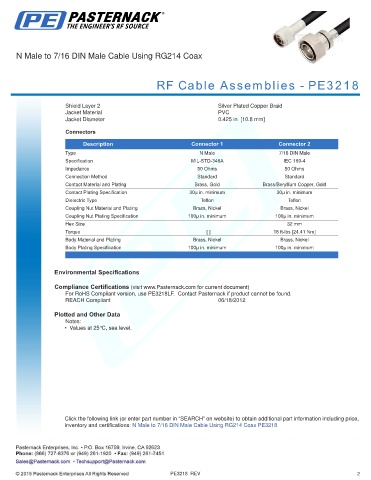

N Male to 7/16 DIN Male Cable Using RG214 Coax

RF Cable Assemblies - PE3218

Shield Layer 2 Silver Plated Copper Braid
Jacket Material PVC
Jacket Diameter 0.425 in [10.8 mm]
Connectors

Description Connector 1 Connector 2
Type N Male 7/16 DIN Male
Specification MIL-STD-348A IEC 169-4
Impedance 50 Ohms 50 Ohms
Connection Method Standard Standard
Contact Material and Plating Brass, Gold Brass/Beryllium Copper, Gold
Contact Plating Specification 30µ in. minimum 30µ in. minimum
Dielectric Type Teflon Teflon
Coupling Nut Material and Plating Brass, Nickel Brass, Nickel
Coupling Nut Plating Specification 100µ in. minimum 100µ in. minimum
Hex Size 32 mm
Torque [ ] 18 ft-lbs [24.41 Nm]
Body Material and Plating Brass, Nickel Brass, Nickel
Body Plating Specification 100µ in. minimum 100µ in. minimum
.

Environmental Specifications

Compliance Certifications (visit www.Pasternack.com for current document)
For RoHS Compliant version, use PE3218LF. Contact Pasternack if product cannot be found.
REACH Compliant 06/18/2012

Plotted and Other Data
Notes:
• Values at 25°C, sea level.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male to 7/16 DIN Male Cable Using RG214 Coax PE3218

PE3218 REV 2
