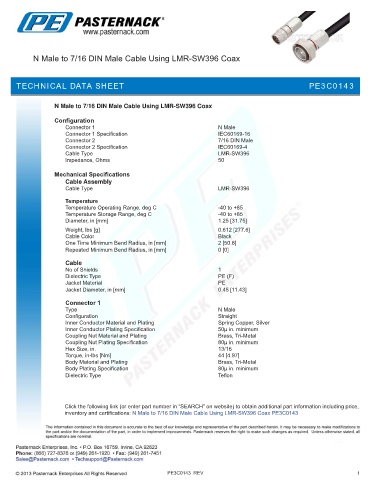

N Male to 7/16 DIN Male Cable Using LMR-SW396 Coax
TECHNICAL DATA SHEETATA SHEET
TECHNICAL D PE3C0143
N Male to 7/16 DIN Male Cable Using LMR-SW396 Coax
Configuration
Connector 1 N Male
Connector 1 Specification IEC60169-16
Connector 2 7/16 DIN Male
Connector 2 Specification IEC60169-4
Cable Type LMR-SW396
Impedance, Ohms 50
Mechanical Specifications
Cable Assembly
Cable Type LMR-SW396
Temperature
Temperature Operating Range, deg C -40 to +85
Temperature Storage Range, deg C -40 to +85
Diameter, in [mm] 1.25 [31.75]
.
Weight, lbs [g] 0.612 [277.6]
Cable Color Black
One Time Minimum Bend Radius, in [mm] 2 [50.8]
Repeated Minimum Bend Radius, in [mm] 0 [0]
Cable
No of Shields 1
Dielectric Type PE (F)
Jacket Material PE
Jacket Diameter, in [mm] 0.45 [11.43]
Connector 1
Type N Male
Configuration Straight
Inner Conductor Material and Plating Spring Copper, Silver
Inner Conductor Plating Specification 50µ in. minimum
Coupling Nut Material and Plating Brass, Tri-Metal
Coupling Nut Plating Specification 80µ in. minimum
Hex Size, in. 13/16
Torque, in-lbs [Nm] 44 [4.97]
Body Material and Plating Brass, Tri-Metal
Body Plating Specification 80µ in. minimum
Dielectric Type Teflon
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male to 7/16 DIN Male Cable Using LMR-SW396 Coax PE3C0143
PE3C0143 REV 1
