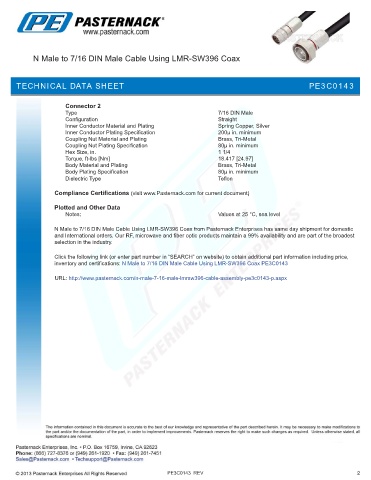

N Male to 7/16 DIN Male Cable Using LMR-SW396 Coax

TECHNICAL D PE3C0143
TECHNICAL DATA SHEETATA SHEET

Connector 2
Type 7/16 DIN Male
Configuration Straight
Inner Conductor Material and Plating Spring Copper, Silver
Inner Conductor Plating Specification 200µ in. minimum
Coupling Nut Material and Plating Brass, Tri-Metal
Coupling Nut Plating Specification 80µ in. minimum
Hex Size, in. 1 1/4
Torque, ft-lbs [Nm] 18.417 [24.97]
Body Material and Plating Brass, Tri-Metal
Body Plating Specification 80µ in. minimum
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)

Plotted and Other Data
Notes: Values at 25 °C, sea level

N Male to 7/16 DIN Male Cable Using LMR-SW396 Coax from Pasternack Enterprises has same day shipment for domestic
and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest
selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male to 7/16 DIN Male Cable Using LMR-SW396 Coax PE3C0143

URL: http://www.pasternack.com/n-male-7-16-male-lmrsw396-cable-assembly-pe3c0143-p.aspx

PE3C0143 REV 2
