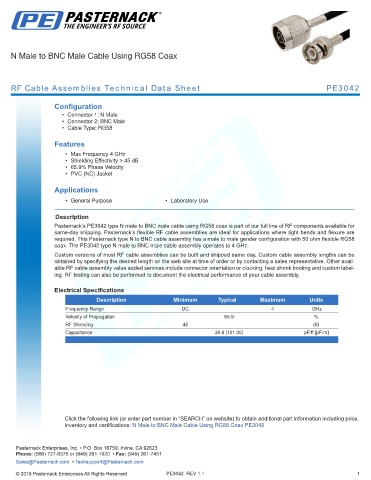

N Male to BNC Male Cable Using RG58 Coax

RF Cable Assemblies Technical Data Sheet PE3042

Configuration
• Connector 1: N Male
• Connector 2: BNC Male
• Cable Type: RG58

Features
• Max Frequency 4 GHz
• Shielding Effectivity > 45 dB
• 65.9% Phase Velocity
• PVC (NC) Jacket

Applications

• General Purpose • Laboratory Use
.
Description
Pasternack’s PE3042 type N male to BNC male cable using RG58 coax is part of our full line of RF components available for
same-day shipping. Pasternack’s flexible RF cable assemblies are ideal for applications where tight bends and flexure are
required. This Pasternack type N to BNC cable assembly has a male to male gender configuration with 50 ohm flexible RG58
coax. The PE3042 type N male to BNC male cable assembly operates to 4 GHz.
Custom versions of most RF cable assemblies can be built and shipped same day. Custom cable assembly lengths can be
obtained by specifying the desired length on the web site at time of order or by contacting a sales representative. Other avail-
able RF cable assembly value added services include connector orientation or clocking, heat shrink booting and custom label-
ing. RF testing can also be performed to document the electrical performance of your cable assembly.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
Velocity of Propagation 65.9 %
RF Shielding 45 dB
Capacitance 30.8 [101.05] pF/ft [pF/m]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male to BNC Male Cable Using RG58 Coax PE3042
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3042 REV 1.1 1
