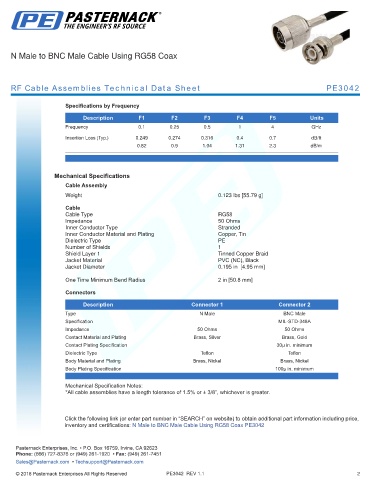

N Male to BNC Male Cable Using RG58 Coax

RF Cable Assemblies Technical Data Sheet PE3042

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 0.1 0.25 0.5 1 4 GHz
Insertion Loss (Typ.) 0.249 0.274 0.316 0.4 0.7 dB/ft
0.82 0.9 1.04 1.31 2.3 dB/m

.

Mechanical Specifications
Cable Assembly
.
Weight 0.123 lbs [55.79 g]
Cable
Cable Type RG58
Impedance 50 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper, Tin
Dielectric Type PE
Number of Shields 1
Shield Layer 1 Tinned Copper Braid
Jacket Material PVC (NC), Black
Jacket Diameter 0.195 in [4.95 mm]
.
One Time Minimum Bend Radius 2 in [50.8 mm]

Connectors
Description Connector 1 Connector 2
Type N Male BNC Male
Specification MIL-STD-348A
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Brass, Silver Brass, Gold
Contact Plating Specification 30µ in. minimum
Dielectric Type Teflon Teflon
Body Material and Plating Brass, Nickel Brass, Nickel
Body Plating Specification 100µ in. minimum
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male to BNC Male Cable Using RG58 Coax PE3042
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3042 REV 1.1 2
