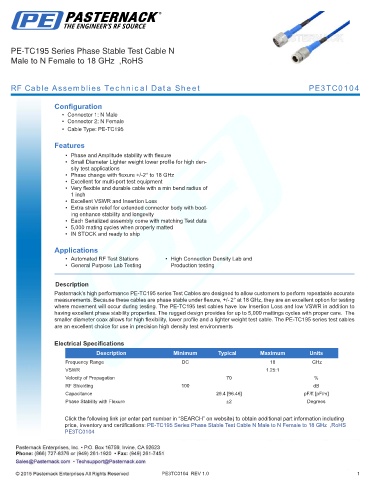

PE-TC195 Series Phase Stable Test Cable N
Male to N Female to 18 GHz ,RoHS

RF Cable Assemblies Technical Data Sheet PE3TC0104

Configuration
• Connector 1: N Male
• Connector 2: N Female
• Cable Type: PE-TC195

Features
• Phase and Amplitude stability with flexure
• Small Diameter Lighter weight lower profile for high den-
sity test applications
• Phase change with flexure +/-2° to 18 GHz
• Excellent for multi-port test equipment
• Very flexible and durable cable with a min bend radius of
1 inch
• Excellent VSWR and Insertion Loss
• Extra strain relief for extended connector body with boot-
ing enhance stability and longevity
• Each Serialized assembly come with matching Test data
• 5,000 mating cycles when properly matted
• IN STOCK and ready to ship

Applications
• Automated RF Test Stations • High Connection Density Lab and
• General Purpose Lab Testing Production testing
.
Description
Pasternack’s high performance PE-TC195 series Test Cables are designed to allow customers to perform repeatable accurate
measurements. Because these cables are phase stable under flexure, +/- 2° at 18 GHz, they are an excellent option for testing
where movement will occur during testing. The PE-TC195 test cables have low Insertion Loss and low VSWR in addition to
having excellent phase stability properties. The rugged design provides for up to 5,000 mattings cycles with proper care. The
smaller diameter coax allows for high flexibility, lower profile and a lighter weight test cable. The PE-TC195 series test cables
are an excellent choice for use in precision high density test environments

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.25:1
Velocity of Propagation 70 %
RF Shielding 100 dB
Capacitance 29.4 [96.46] pF/ft [pF/m]
Phase Stability with Flexure ±2 Degrees

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: PE-TC195 Series Phase Stable Test Cable N Male to N Female to 18 GHz ,RoHS
PE3TC0104
