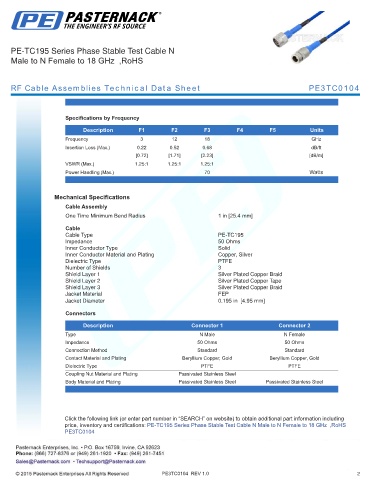

PE-TC195 Series Phase Stable Test Cable N
Male to N Female to 18 GHz ,RoHS

RF Cable Assemblies Technical Data Sheet PE3TC0104

.

Specifications by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency 3 12 18 GHz
Insertion Loss (Max.) 0.22 0.52 0.68 dB/ft
[0.72] [1.71] [2.23] [dB/m]
VSWR (Max.) 1.25:1 1.25:1 1.25:1
Power Handling (Max.) 70 Watts
.

Mechanical Specifications
Cable Assembly
.
One Time Minimum Bend Radius 1 in [25.4 mm]
Cable
Cable Type PE-TC195
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper, Silver
Dielectric Type PTFE
Number of Shields 3
Shield Layer 1 Silver Plated Copper Braid
Shield Layer 2 Silver Plated Copper Tape
Shield Layer 3 Silver Plated Copper Braid
Jacket Material FEP
Jacket Diameter 0.195 in [4.95 mm]

Connectors
Description Connector 1 Connector 2
Type N Male N Female
Impedance 50 Ohms 50 Ohms
Connection Method Standard Standard
Contact Material and Plating Beryllium Copper, Gold Beryllium Copper, Gold
Dielectric Type PTFE PTFE
Coupling Nut Material and Plating Passivated Stainless Steel
Body Material and Plating Passivated Stainless Steel Passivated Stainless Steel
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: PE-TC195 Series Phase Stable Test Cable N Male to N Female to 18 GHz ,RoHS
PE3TC0104
