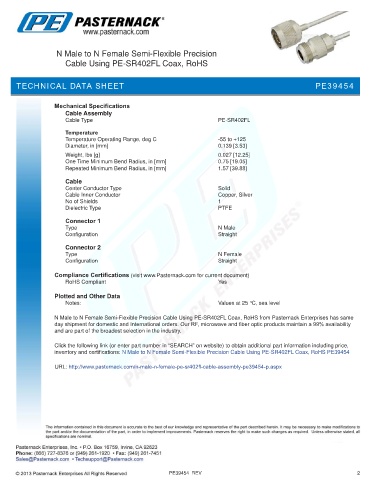

Page 1743 - BNC to N RF Cable Assembly Datasheets

N Male to N Female Semi-Flexible Precision
Cable Using PE-SR402FL Coax, RoHS

TECHNICAL DATA SHEETATA SHEET
TECHNICAL D PE39454

Mechanical Specifications
Cable Assembly
Cable Type PE-SR402FL

Temperature
Temperature Operating Range, deg C -55 to +125
Diameter, in [mm] 0.139 [3.53]
.
Weight, lbs [g] 0.027 [12.25]
One Time Minimum Bend Radius, in [mm] 0.75 [19.05]
Repeated Minimum Bend Radius, in [mm] 1.57 [39.88]

Cable
Center Conductor Type Solid
Cable Inner Conductor Copper, Silver
No of Shields 1
Dielectric Type PTFE

Connector 1
Type N Male
Configuration Straight
Connector 2
Type N Female
Configuration Straight

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

N Male to N Female Semi-Flexible Precision Cable Using PE-SR402FL Coax, RoHS from Pasternack Enterprises has same
day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability
and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male to N Female Semi-Flexible Precision Cable Using PE-SR402FL Coax, RoHS PE39454

URL: http://www.pasternack.com/n-male-n-female-pe-sr402fl-cable-assembly-pe39454-p.aspx

PE39454 REV 2
