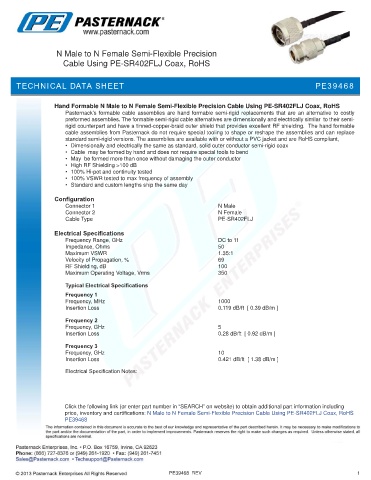

Hand Formable N Male to N Female Semi-Flexible Precision Cable Using PE-SR402FLJ Coax, RoHS
Pasternack’s formable cable assemblies are hand formable semi-rigid replacements that are an alternative to costly
preformed assemblies. The formable semi-rigid cable alternatives are dimensionally and electrically similar to their semi-
rigid counterpart and have a tinned-copper-braid outer shield that provides excellent RF shielding. The hand formable
cable assemblies from Pasternack do not require special tooling to shape or reshape the assemblies and can replace
standard semi-rigid versions. The assemblies are available with or without a PVC jacket and are RoHS compliant,
• Dimensionally and electrically the same as standard, solid outer conductor semi-rigid coax
• Cable may be formed by hand and does not require special tools to bend
• May be formed more than once without damaging the outer conductor
• High RF Shielding >100 dB
• 100% Hi-pot and continuity tested
• 100% VSWR tested to max frequency of assembly
• Standard and custom lengths ship the same day

Configuration
Connector 1 N Male
Connector 2 N Female
Cable Type PE-SR402FLJ

Electrical Specifications
Frequency Range, GHz DC to 11
Impedance, Ohms 50
Maximum VSWR 1.35:1
Velocity of Propagation, % 69
RF Shielding, dB 100
Maximum Operating Voltage, Vrms 350
Typical Electrical Specifications
Frequency 1
Frequency, MHz 1000
Insertion Loss 0.119 dB/ft [ 0.39 dB/m ]
Frequency 2
Frequency, GHz 5
Insertion Loss 0.28 dB/ft [ 0.92 dB/m ]

Frequency 3
Frequency, GHz 10
Insertion Loss 0.421 dB/ft [ 1.38 dB/m ]

Electrical Specification Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: N Male to N Female Semi-Flexible Precision Cable Using PE-SR402FLJ Coax, RoHS
PE39468

PE39468 REV 1
