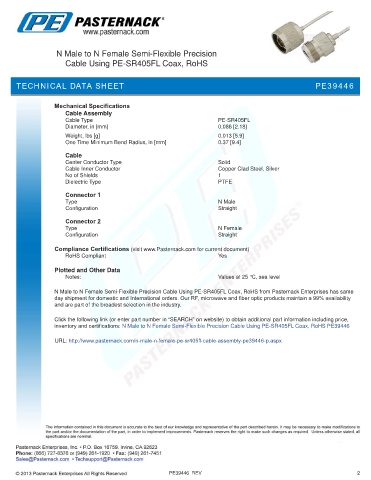

N Male to N Female Semi-Flexible Precision
Cable Using PE-SR405FL Coax, RoHS

TECHNICAL D PE39446
TECHNICAL DATA SHEETATA SHEET

Mechanical Specifications
Cable Assembly
Cable Type PE-SR405FL
Diameter, in [mm] 0.086 [2.18]
.
Weight, lbs [g] 0.013 [5.9]
One Time Minimum Bend Radius, in [mm] 0.37 [9.4]
Cable
Center Conductor Type Solid
Cable Inner Conductor Copper Clad Steel, Silver
No of Shields 1
Dielectric Type PTFE
Connector 1
Type N Male
Configuration Straight

Connector 2
Type N Female
Configuration Straight

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

N Male to N Female Semi-Flexible Precision Cable Using PE-SR405FL Coax, RoHS from Pasternack Enterprises has same
day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability
and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male to N Female Semi-Flexible Precision Cable Using PE-SR405FL Coax, RoHS PE39446

URL: http://www.pasternack.com/n-male-n-female-pe-sr405fl-cable-assembly-pe39446-p.aspx

PE39446 REV 2
