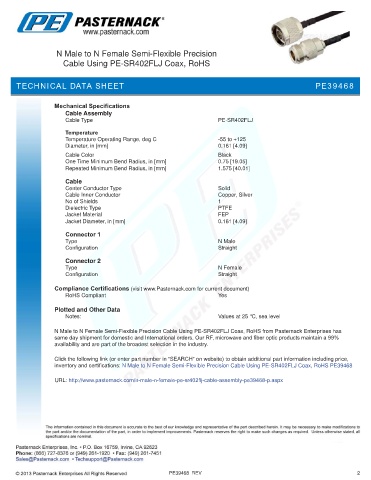

N Male to N Female Semi-Flexible Precision
Cable Using PE-SR402FLJ Coax, RoHS

TECHNICAL DATA SHEETATA SHEET
TECHNICAL D PE39468

Mechanical Specifications
Cable Assembly
Cable Type PE-SR402FLJ

Temperature
Temperature Operating Range, deg C -55 to +125
Diameter, in [mm] 0.161 [4.09]
.
Cable Color Black
One Time Minimum Bend Radius, in [mm] 0.75 [19.05]
Repeated Minimum Bend Radius, in [mm] 1.575 [40.01]

Cable
Center Conductor Type Solid
Cable Inner Conductor Copper, Silver
No of Shields 1
Dielectric Type PTFE
Jacket Material FEP
Jacket Diameter, in [mm] 0.161 [4.09]

Connector 1
Type N Male
Configuration Straight

Connector 2
Type N Female
Configuration Straight

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

N Male to N Female Semi-Flexible Precision Cable Using PE-SR402FLJ Coax, RoHS from Pasternack Enterprises has
same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%
availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male to N Female Semi-Flexible Precision Cable Using PE-SR402FLJ Coax, RoHS PE39468

URL: http://www.pasternack.com/n-male-n-female-pe-sr402flj-cable-assembly-pe39468-p.aspx

PE39468 REV 2
