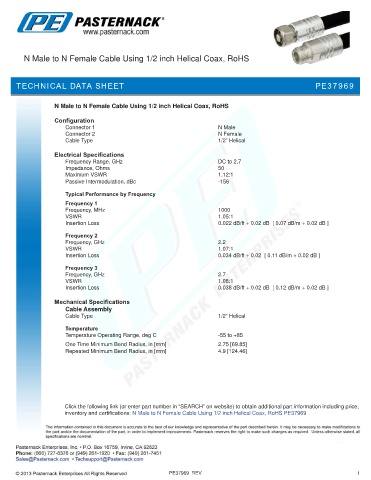

N Male to N Female Cable Using 1/2 inch Helical Coax, RoHS
TECHNICAL DATA SHEETATA SHEET
TECHNICAL D PE37969
N Male to N Female Cable Using 1/2 inch Helical Coax, RoHS
Configuration
Connector 1 N Male
Connector 2 N Female
Cable Type 1/2” Helical
Electrical Specifications
Frequency Range, GHz DC to 2.7
Impedance, Ohms 50
Maximum VSWR 1.12:1
Passive Intermodulation, dBc -156
Typical Performance by Frequency
Frequency 1
Frequency, MHz 1000
VSWR 1.05:1
Insertion Loss 0.022 dB/ft + 0.02 dB [ 0.07 dB/m + 0.02 dB ]
Frequency 2
Frequency, GHz 2.2
VSWR 1.07:1
Insertion Loss 0.034 dB/ft + 0.02 [ 0.11 dB/m + 0.02 dB ]
Frequency 3
Frequency, GHz 2.7
VSWR 1.08:1
Insertion Loss 0.038 dB/ft + 0.02 dB [ 0.12 dB/m + 0.02 dB ]
Mechanical Specifications
Cable Assembly
Cable Type 1/2” Helical
Temperature
Temperature Operating Range, deg C -55 to +85
.
One Time Minimum Bend Radius, in [mm] 2.75 [69.85]
Repeated Minimum Bend Radius, in [mm] 4.9 [124.46]
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male to N Female Cable Using 1/2 inch Helical Coax, RoHS PE37969
PE37969 REV 1
