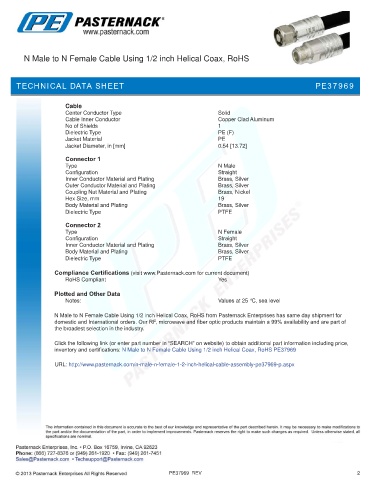

N Male to N Female Cable Using 1/2 inch Helical Coax, RoHS

TECHNICAL DATA SHEETATA SHEET
TECHNICAL D PE37969

Cable
Center Conductor Type Solid
Cable Inner Conductor Copper Clad Aluminum
No of Shields 1
Dielectric Type PE (F)
Jacket Material PE
Jacket Diameter, in [mm] 0.54 [13.72]

Connector 1
Type N Male
Configuration Straight
Inner Conductor Material and Plating Brass, Silver
Outer Conductor Material and Plating Brass, Silver
Coupling Nut Material and Plating Brass, Nickel
Hex Size, mm 19
Body Material and Plating Brass, Silver
Dielectric Type PTFE

Connector 2
Type N Female
Configuration Straight
Inner Conductor Material and Plating Brass, Silver
Body Material and Plating Brass, Silver
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

N Male to N Female Cable Using 1/2 inch Helical Coax, RoHS from Pasternack Enterprises has same day shipment for
domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of
the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male to N Female Cable Using 1/2 inch Helical Coax, RoHS PE37969

URL: http://www.pasternack.com/n-male-n-female-1-2-inch-helical-cable-assembly-pe37969-p.aspx

PE37969 REV 2
