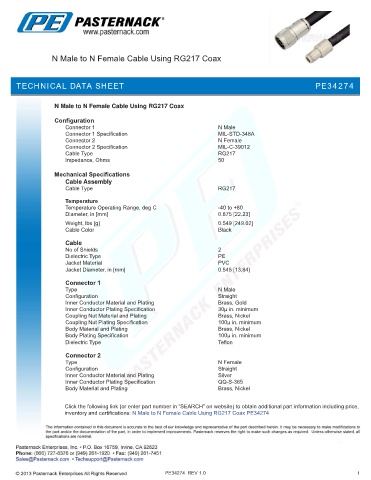

N Male to N Female Cable Using RG217 Coax

TECHNICAL DATA SHEETATA SHEET
TECHNICAL D PE34274

N Male to N Female Cable Using RG217 Coax

Configuration
Connector 1 N Male
Connector 1 Specification MIL-STD-348A
Connector 2 N Female
Connector 2 Specification MIL-C-39012
Cable Type RG217
Impedance, Ohms 50

Mechanical Specifications
Cable Assembly
Cable Type RG217

Temperature
Temperature Operating Range, deg C -40 to +80
Diameter, in [mm] 0.875 [22.23]
.
Weight, lbs [g] 0.549 [249.02]
Cable Color Black
Cable
No of Shields 2
Dielectric Type PE
Jacket Material PVC
Jacket Diameter, in [mm] 0.545 [13.84]

Connector 1
Type N Male
Configuration Straight
Inner Conductor Material and Plating Brass, Gold
Inner Conductor Plating Specification 30µ in. minimum
Coupling Nut Material and Plating Brass, Nickel
Coupling Nut Plating Specification 100µ in. minimum
Body Material and Plating Brass, Nickel
Body Plating Specification 100µ in. minimum
Dielectric Type Teflon
Connector 2
Type N Female
Configuration Straight
Inner Conductor Material and Plating Silver
Inner Conductor Plating Specification QQ-S-365
Body Material and Plating Brass, Nickel

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male to N Female Cable Using RG217 Coax PE34274

PE34274 REV 1.0 1
